MD-320 VFFS Automatic Packing Machine

$5,530.00

Suitable for many kinds of Measuring equipment,and packing different kind of products: Such as Puffy Food;Shrimp Roll;Peanut;Popcorn;Cornmeal;Seed and Sugar ,which shape is roll,slice and granule.

Category:

RELATED PRODUCTS

Application

Suitable for many kinds of Measuring equipment,and packing different kind of products: Such as Puffy Food;Shrimp Roll;Peanut;Popcorn;Cornmeal;Seed and Sugar ,which shape is roll,slice and granule.

Technical Characteristics

English Control Touch-screen display;easy to operate;easy to us

PLC Computer Control System run more stable and Doesn’t stop to adjust any parameter

Store Ten Parameters,changing product in more accurately

Servo Motor Vacuum Membrane;Precise Positioning

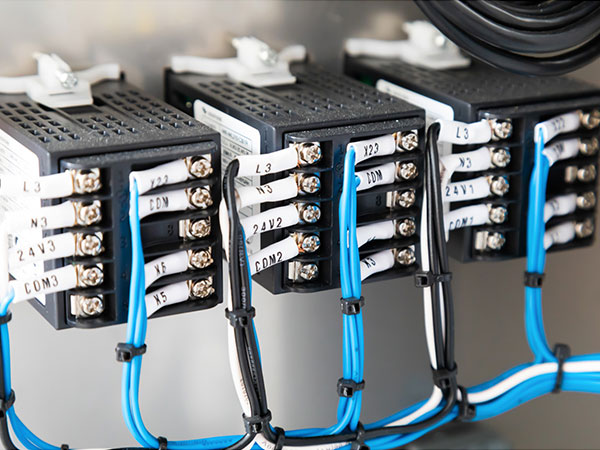

Independent Temperature Control System

Transverse and longitudinal sealing Suitable for PE compound Film

Different Packing Style:Back Seal Gusseted;Pouch;Link Bag..etc

Bag Making;Sealing;Packaging;Date printing to been finished

Clean Working and Low Noise

Model

MD-320

Bag Length

80-200 mm(L)

Bag Width

50-150mm(W)

Film Width

320mm

Film Thickness

0.04-0.09mm

Packing Speed

15-70 bags/min

Air Consumption

0.3m3/min,0.6Mpa

Working Voltage

220V 50/60Hz

Power

2.2KW

Dimension

1300(L)×820(W)×1400(H)mm

Weight

250Kgs
